Rectangular Platen Format
The rectangular 400 × 502 mm pressing surface is suited to dough products that benefit from a broader non-round working area.
Commercial dough press

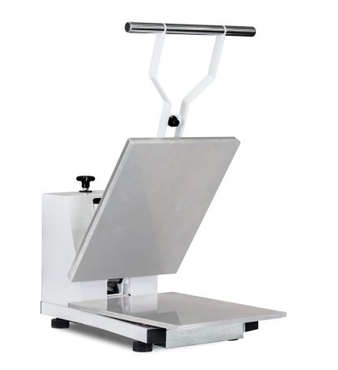

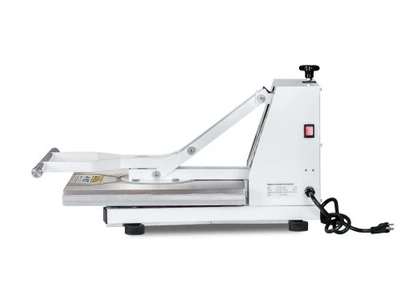

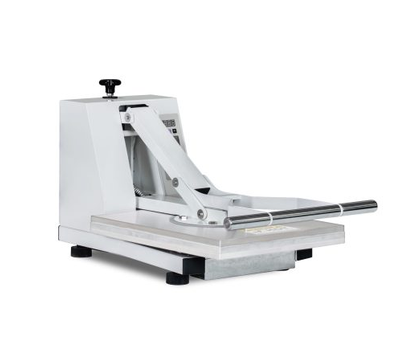

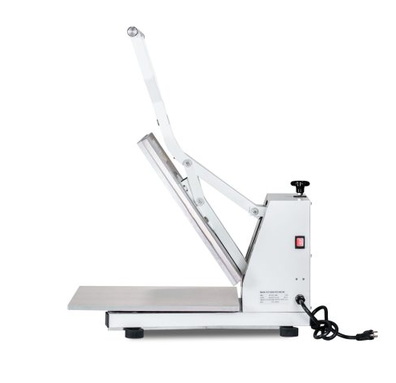

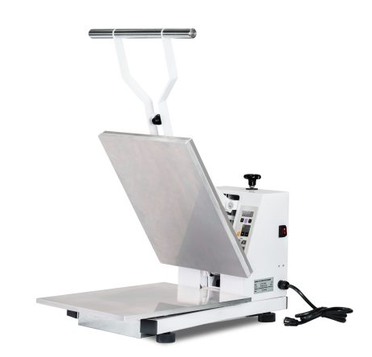

Rectangular Clamshell Dual-Heat Dough Press
MODEL MPP-DP-10
Commercial rectangular clamshell dough press with upper and lower heated platens and a 400 × 502 mm pressing area for consistent commercial dough preparation.
Application overview
Applications
Tortillas, pizza dough, flatbreads and other dough products suited to a rectangular pressing format.
Request commercial pricing for MPP-DP-10
Include your quantity and delivery location so we can prepare the appropriate quotation.
Product Description
Commercial rectangular clamshell dough press with upper and lower heated platens and a 400 × 502 mm pressing area for consistent commercial dough preparation.
At a Glance
- Rectangular Platen Format
- Upper and Lower Heating
- Manual Clamshell Operation
- Time and Temperature Control
Technical Specifications
| Model | MPP-DP-10 |
|---|---|
| Heat Configuration | Dual heat |
| Platen Size | 400 × 502 mm (approx. 16 × 20 in) |
| Platen Shape | Rectangular |
| Power | 3600 W |
| Electrical | 220V |
| Machine Dimensions | 470 × 816 × 470 mm |
| Net Weight | 57 kg |
| Maximum Temperature | 230°C / 446°F |
| Operation | Manual clamshell |
| Control | Digital time and temperature control |
Specifications are based on currently available product information and are subject to confirmation at quotation.
Product Video
Downloads
Product documents coming soon
Approved brochures, manuals, specification sheets and other product documents will be available here when released.
Key product features
Designed Around the Pressing Process
Model-specific information based on the currently available technical data for MPP-DP-10.
Upper and Lower Heating
Dual-heated platens provide controlled heat from both sides during the pressing cycle.
Manual Clamshell Operation
The hinged clamshell format provides straightforward loading, pressing and unloading in a compact footprint.
Time and Temperature Control
Digital controls allow the operator to manage the heated pressing process for recurring products.
Typical applications
Where MPP-DP-10 Fits
Tortillas, pizza dough, flatbreads and other dough products suited to a rectangular pressing format.
Operating fit
Why Consider This Model
Choose MPP-DP-10 when you need a rectangular dual-heated clamshell press and prefer a straightforward manual operating format for repeatable commercial dough preparation.
Equipment selection
Need Help Comparing Presses?
Tell us what you are pressing, your target size or thickness, expected production volume and delivery location. We can help identify suitable available equipment.
