Rectangular Platen Format
The 400 × 502 mm work area provides a broader rectangular surface for dough formats that do not fit a standard round platen.
Commercial dough press

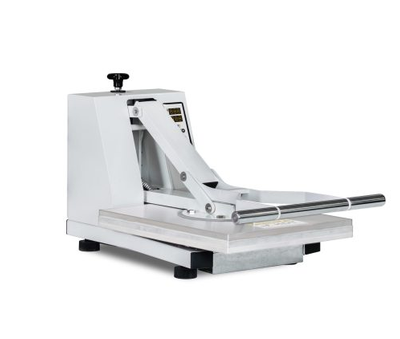

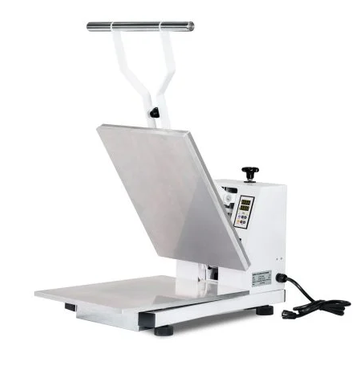

Rectangular Programmable Dual-Heat Dough Press
MODEL MPP-DP-09
Commercial rectangular clamshell dough press with upper and lower heat, programmable controls and a larger rectangular platen format for repeatable dough preparation.
Application overview
Applications
Tortillas, pizza dough, flatbreads and other dough products suited to a rectangular pressing area.
Request commercial pricing for MPP-DP-09
Include your quantity and delivery location so we can prepare the appropriate quotation.
Product Description
Commercial rectangular clamshell dough press with upper and lower heat, programmable controls and a larger rectangular platen format for repeatable dough preparation.
At a Glance
- Rectangular Platen Format
- Upper and Lower Heated Platens
- Programmable Controls
- Adjustable Thickness
Technical Specifications
| Model | MPP-DP-09 |
|---|---|
| Heat Configuration | Dual heat |
| Platen Size | 400 × 502 mm (approx. 16 × 20 in) |
| Platen Shape | Rectangular |
| Power | 3600 W |
| Electrical | 220V |
| Machine Dimensions | 470 × 816 × 470 mm |
| Net Weight | 58 kg |
| Thickness Range | 1–11 mm |
| Maximum Temperature | 230°C / 446°F |
| Operation | Manual clamshell |
| Control | Digital / programmable |
Specifications are based on currently available product information and are subject to confirmation at quotation.
Product Video
Downloads
Product documents coming soon
Approved brochures, manuals, specification sheets and other product documents will be available here when released.
Key product features
Designed Around the Pressing Process
Model-specific information based on the currently available technical data for MPP-DP-09.
Dual-Heated Platens
Upper and lower platen heating applies controlled heat from both sides during pressing.
Programmable Controls
Digital controls support repeatable time and temperature settings for recurring products.
Adjustable Thickness
The pressing setup supports a published thickness range of 1–11 mm.
Typical applications
Where MPP-DP-09 Fits
Tortillas, pizza dough, flatbreads and other dough products suited to a rectangular pressing area.
Operating fit
Why Consider This Model
Choose MPP-DP-09 when a rectangular pressing surface and programmable dual-heat operation better match the finished product than an 18-inch round platen.
Equipment selection
Need Help Comparing Presses?
Tell us what you are pressing, your target size or thickness, expected production volume and delivery location. We can help identify suitable available equipment.
