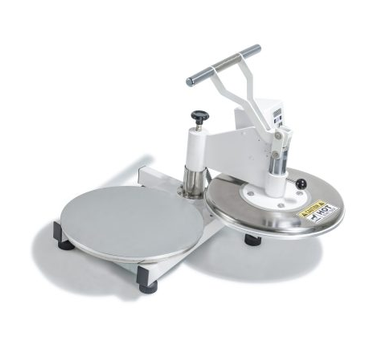

Swing-Away Work Area
The pressing assembly moves away from the lower platen to provide clear access for loading and product removal.
Commercial dough press

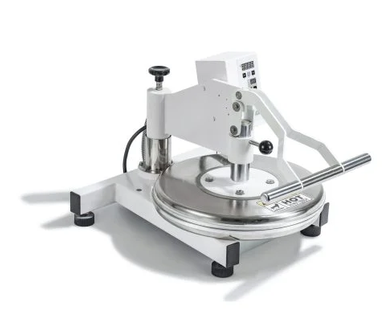

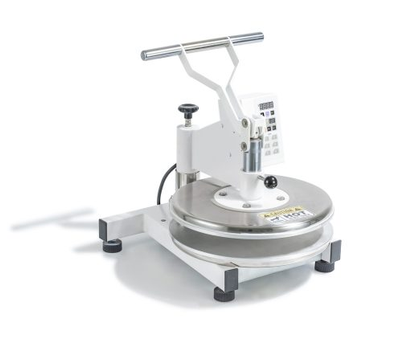

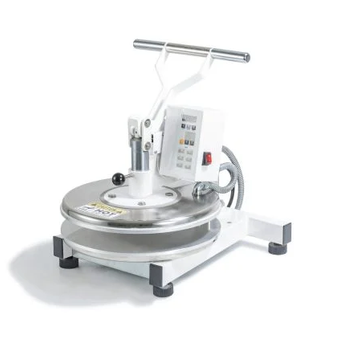

18" Manual Dual-Heat Dough Press
MODEL MPP-DP-05
Commercial swing-away dough press with upper and lower heated platens, programmable controls and an 18-inch round pressing surface.
Application overview
Applications
Pizza dough, tortillas and similar round dough products.
Request commercial pricing for MPP-DP-05
Include your quantity and delivery location so we can prepare the appropriate quotation.
Product Description
MPP-DP-05 combines swing-away loading access with upper and lower platen heating. It is intended for commercial round-dough applications requiring a broad adjustable thickness range and higher-temperature heated pressing in a manual workflow.
At a Glance
- Swing-Away Work Area
- Upper & Lower Heat
- 18-Inch Round Format
- Broad Thickness Adjustment
Technical Specifications
| Model | MPP-DP-05 |
|---|---|
| Applications | Pizza dough, tortillas |
| Heat Configuration | Upper and lower heat |
| Platen Size | 18 in |
| Platen Shape | Round |
| Power | 3300 W (1650 W + 1650 W) |
| Electrical | 220–240V |
| Machine Dimensions | 610 × 476 × 412 mm |
| Packing Dimensions | 710 × 585 × 580 mm |
| Net Weight | 99 kg |
| Thickness Range | Up to 30 mm |
| Maximum Temperature | 230°C / 446°F |
| Operation | Manual swing-away |
Specifications are based on currently available product information and are subject to confirmation at quotation.
Product Video
Downloads
Product documents coming soon
Approved brochures, manuals, specification sheets and other product documents will be available here when released.
Key product features
Designed Around the Pressing Process
Model-specific information based on the currently available technical data for MPP-DP-05.
Upper & Lower Heat
Both platens are heated for controlled dual-sided dough pressing.
18-Inch Round Format
The platen size supports pizza, tortilla and related round dough applications.
Broad Thickness Adjustment
Published product information indicates an adjustable product thickness up to 30 mm.
Typical applications
Where MPP-DP-05 Fits
Pizza dough, tortillas and similar round dough products.
Operating fit
Why Consider This Model
MPP-DP-05 is a useful option where operators want the accessibility of swing-away loading together with dual heat and a wider thickness range. It supports varied round-dough preparation without changing to a different platen format.
Equipment selection
Need Help Comparing Presses?
Tell us what you are pressing, your target size or thickness, expected production volume and delivery location. We can help identify suitable available equipment.
