Dual-Heated Platens
Upper and lower heating provides controlled heat on both sides of the dough during pressing.
Commercial dough press

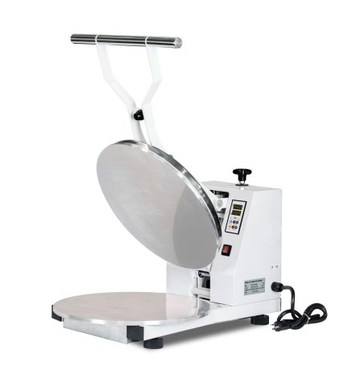

18" Clamshell Dual-Heat Dough Press
MODEL MPP-DP-03
Compact clamshell press with heated upper and lower platens and an 18-inch round pressing surface for commercial dough preparation.
Application overview
Applications
Pizza dough, tortillas and flatbreads.
Request commercial pricing for MPP-DP-03
Include your quantity and delivery location so we can prepare the appropriate quotation.
Product Description
MPP-DP-03 uses a manual clamshell mechanism with heated upper and lower platens to flatten round dough products. The 18-inch pressing surface, dual-heat configuration and adjustable setup are intended for repeatable commercial preparation of pizza dough, tortillas and similar products.
At a Glance
- Dual-Heated Platens
- 18-Inch Round Capacity
- Clamshell Operation
- Temperature & Thickness Control
Technical Specifications
| Model | MPP-DP-03 |
|---|---|
| Applications | Pizza dough, tortillas, flatbreads |
| Heat Configuration | Dual heat |
| Platen Size | 18 in |
| Platen Shape | Round |
| Power | 3300 W |
| Electrical | 220–240V / 380V |
| Machine Dimensions | 470 × 765 × 470 mm |
| Net Weight | 51 kg |
| Maximum Temperature | 230°C / 446°F |
Specifications are based on currently available product information and are subject to confirmation at quotation.
Product Video
Downloads
Product documents coming soon
Approved brochures, manuals, specification sheets and other product documents will be available here when released.
Key product features
Designed Around the Pressing Process
Model-specific information based on the currently available technical data for MPP-DP-03.
18-Inch Round Capacity
The round platen format accommodates common commercial pizza, tortilla and flatbread sizes.
Clamshell Operation
The hinged manual pressing mechanism keeps the loading and pressing sequence straightforward.
Temperature & Thickness Control
The press supports controlled heating and adjustable dough thickness for different product requirements.
Typical applications
Where MPP-DP-03 Fits
Pizza dough, tortillas and flatbreads.
Operating fit
Why Consider This Model
Choose this configuration when a compact clamshell format and heat on both sides of the dough are preferred. It combines a familiar manual pressing action with an 18-inch round platen and higher-temperature dual heating.
Equipment selection
Need Help Comparing Presses?
Tell us what you are pressing, your target size or thickness, expected production volume and delivery location. We can help identify suitable available equipment.
