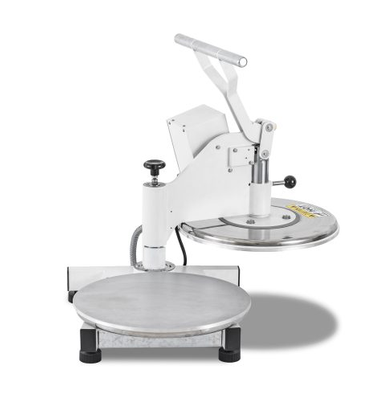

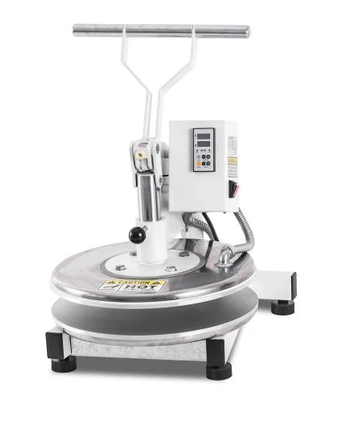

Swing-Away Access
The upper pressing assembly moves away from the loading area, providing open access to the lower platen between pressing cycles.
Commercial dough press

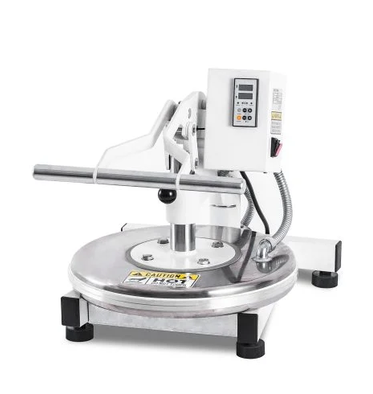

18" Swing-Away Dual-Heat Dough Press
MODEL MPP-DP-01
Swing-away commercial dough press with upper and lower heated platens and an 18-inch round pressing surface.
Application overview
Applications
Pizza dough, tortillas and flatbreads.
Request commercial pricing for MPP-DP-01
Include your quantity and delivery location so we can prepare the appropriate quotation.
Product Description
MPP-DP-01 combines a swing-away pressing layout with upper and lower heat to support consistent commercial dough forming. The open swing-away movement provides clear access to the lower platen between cycles, while the heated round platens and adjustable thickness setup support repeatable results across common flat-dough applications.
At a Glance
- Swing-Away Access
- Upper & Lower Heat
- 18-Inch Round Platen
- Adjustable Thickness
Technical Specifications
| Model | MPP-DP-01 |
|---|---|
| Application | Pizza dough, tortillas, flatbreads |
| Heat / Operation | Dual Heat |
| Plate / Platen | 18 in |
| Plate Shape | Round |
| Power | 3300 W |
| Electrical | 220V / 50Hz |
| Machine Dimensions | 470 × 765 × 470 mm closed; 470 × 709 × 857 mm open |
| Net Weight | 51 kg |
| Thickness Range | 1–15 mm |
| Maximum Temperature | 230°C / 446°F |
Specifications are based on currently available product information and are subject to confirmation at quotation.
Product Video
Downloads
Product documents coming soon
Approved brochures, manuals, specification sheets and other product documents will be available here when released.
Key product features
Designed Around the Pressing Process
Model-specific information based on the currently available technical data for MPP-DP-01.
Upper & Lower Heat
Dual heated platens provide controlled heat from both sides during pressing.
18-Inch Round Platen
The round pressing area supports larger pizza, tortilla and flatbread applications up to the stated platen diameter.
Adjustable Thickness
The pressing setup accommodates an adjustable finished thickness range for different dough products.
Typical applications
Where MPP-DP-01 Fits
Pizza dough, tortillas and flatbreads.
Operating fit
Why Consider This Model
A strong fit for operators who want heated pressing with open loading access and a round 18-inch format. Its swing-away layout separates loading from the pressing position, while dual heat supports consistent forming across repeated batches.
Equipment selection
Need Help Comparing Presses?
Tell us what you are pressing, your target size or thickness, expected production volume and delivery location. We can help identify suitable available equipment.
